Hadoop MapReduceで相関行列を計算する:ステップ5:観測値の平均からの偏差を求める (step5: subtract means from samples in matrix form)
MapReduceで大きな(5000変量〜)相関行列を求めるプログラム作りも、ようやく折り返し地点。

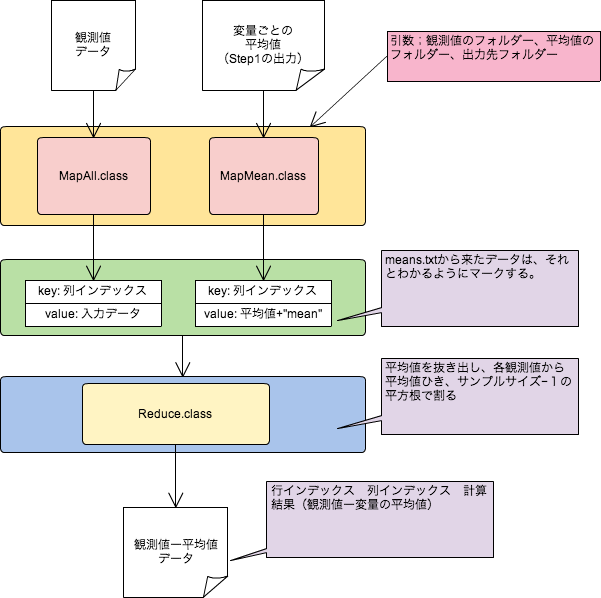

今日は、行列
を算出するステップのコードを作成する。。
注記;標準偏差の算出に不偏分散を用いたので、スケールを合わせるため、サンプルサイズ(n)−1の平方根で割ることとする。
以下がプログラムとなる。GitHubでも公開しています(MatrixSubMeans.java)。
package com.tetsuyaodaka.hadoop.math.matrix; import java.io.IOException; import java.math.BigDecimal; import java.util.ArrayList; import java.util.List; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.DoubleWritable; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.LongWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.Reducer; import org.apache.hadoop.mapreduce.Mapper; import org.apache.hadoop.mapreduce.lib.input.MultipleInputs; import org.apache.hadoop.mapreduce.lib.input.TextInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; /** * MatrixSubMeansクラス * * (すでに計算された)観測値の平均からの偏差を求める * */ public class MatrixSubMeans { /* * 全データを読み込んで、変量のインデックスをキーとして、Textで書き出す。 * */ public static class MapAll extends Mapper<LongWritable, Text, IntWritable, Text>{ @Override protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException{ String strArr[] = value.toString().split("\t"); String keyArr[] = strArr[0].split(" "); int var= Integer.parseInt(keyArr[0]); // number of column context.write(new IntWritable(var), value); } } /* * 変量ごとの算術平均の計算結果を読んで、変量のインデックスをキーとして、Textで書き出す。 * この際、平均値の後ろにmeanとつけて、reduceで読んだときのマークとする。 * */ public static class MapMean extends Mapper<LongWritable, Text, IntWritable, Text>{ @Override protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException{ String line = value.toString(); String[] strArr = line.split("\t"); int oKey = Integer.parseInt(strArr[0]); // number of column value = new Text(strArr[1]+" mean"); context.write(new IntWritable(oKey), value); } } public static class Reduce extends Reducer<IntWritable, Text, Text, DoubleWritable>{ @Override protected void reduce(IntWritable key, Iterable<Text> values, Context context) throws IOException, InterruptedException{ double mean = 0; List<String> list = new ArrayList<String>(); for(Text value: values){ String line = value.toString(); if(line.indexOf("mean")!=-1){ String[] strArr = line.split(" "); mean = Double.parseDouble(strArr[0]); } else { list.add(line); } } for(int i=0;i<list.size();i++){ String l=list.get(i); String strArr[] = l.split("\t"); double var= Double.parseDouble(strArr[1]); // number of column var -= mean; var /= Math.sqrt(list.size()-1); BigDecimal bd = new BigDecimal(var); BigDecimal r = bd.setScale(2, BigDecimal.ROUND_HALF_UP); context.write(new Text(strArr[0]), new DoubleWritable(r.doubleValue())); } } } public static void main(String[] args) throws IOException, InterruptedException, ClassNotFoundException { Job job = new Job(new Configuration(), "SubtructMeans"); job.setJarByClass(MatrixSubMeans.class); job.setReducerClass(Reduce.class); job.setMapOutputKeyClass(IntWritable.class); job.setMapOutputValueClass(Text.class); job.setOutputKeyClass(Text.class); job.setOutputValueClass(DoubleWritable.class); // Mapperごとに読み込むファイルを変える。 MultipleInputs.addInputPath(job, new Path(args[0]), TextInputFormat.class, MapAll.class); MultipleInputs.addInputPath(job, new Path(args[1]), TextInputFormat.class, MapMean.class); FileOutputFormat.setOutputPath(job, new Path(args[2])); boolean success = job.waitForCompletion(true); System.out.println(success); } }

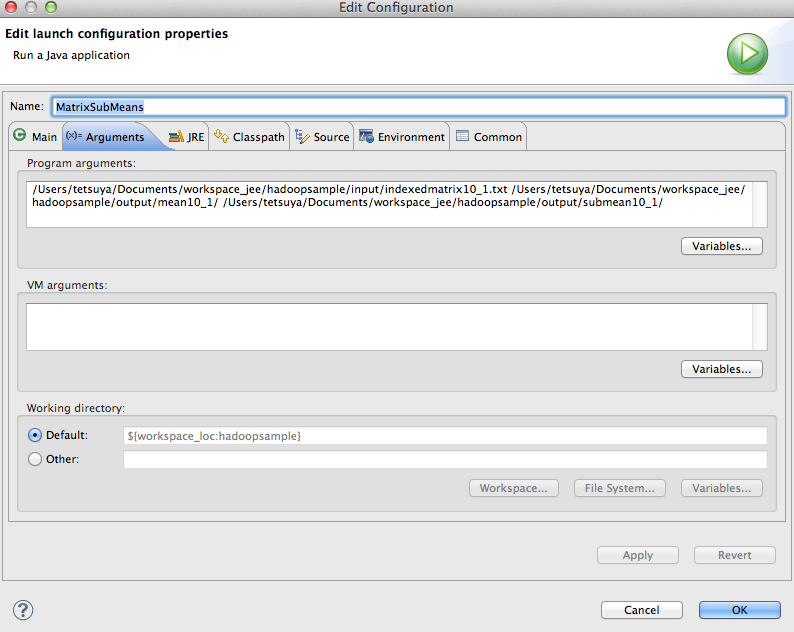

実行時には、観測値行列の入っているフォルダー、平均値データの入っているフォルダー、出力先フォルダーを引数として指定する。
ステップ1の観測値と、ステップ2で算出した平均値を用いた場合、以下の結果が出力される。
1 1 -0.78 1 2 -1.24 1 3 1.26 1 4 0.52 1 5 1.06 1 6 0.49 1 7 -1.48 1 8 -0.74 1 9 0.26 1 10 0.66 2 1 0.65 2 2 -0.05 2 3 1.05 2 4 1.05 2 5 -1.09 2 6 -0.45 2 7 -0.79 2 8 -0.09 2 9 -0.85 2 10 0.58 3 1 -0.98 3 2 0.99 3 3 -0.45 3 4 0.59 3 5 -0.41 3 6 0.65 3 7 -0.75 3 8 0.45 3 9 0.85 3 10 -0.95 4 1 0.8 4 2 -0.1 4 3 1.14 4 4 -1.3 4 5 -0.73 4 6 0.2 4 7 0.84 4 8 -0.7 4 9 0 4 10 -0.16 5 1 -0.73 5 2 0.34 5 3 0.24 5 4 1.34 5 5 1.14 5 6 -0.33 5 7 -0.53 5 8 -0.19 5 9 -1.26 5 10 -0.03 6 1 -0.44 6 2 -0.21 6 3 1.13 6 4 0.43 6 5 -0.11 6 6 -1.01 6 7 -0.77 6 8 0.19 6 9 -0.01 6 10 0.79 7 1 -0.8 7 2 -0.34 7 3 -0.47 7 4 -0.7 7 5 1.03 7 6 -0.5 7 7 0.63 7 8 1.16 7 9 0.93 7 10 -0.94 8 1 0.82 8 2 1.02 8 3 -0.54 8 4 -0.18 8 5 -1.48 8 6 1.56 8 7 1.66 8 8 -1.04 8 9 -0.78 8 10 -1.04 9 1 -1.13 9 2 -1.53 9 3 -0.09 9 4 0.84 9 5 1.41 9 6 -0.39 9 7 -0.33 9 8 1.21 9 9 1.51 9 10 -1.49 10 1 0.92 10 2 -0.61 10 3 1.09 10 4 -0.85 10 5 -0.21 10 6 0.05 10 7 0.09 10 8 -1.45 10 9 0.45 10 10 0.52
